Water Treatment Shipping Marine Scrubber Tower

Name: Water Treatment Shipping Marine Scrubber Tower
Brand: Puyier
Price: 1 USD

China Water Treatment Shipping Marine Scrubber Tower factory

Brand Name : Puyier

Model Number : PYDeSOx

Certification : ABS, IAAP,CCS, LIoyd's, DNV.GL, NIPPON KAIJI KYOKAI

Place of Origin : China

MOQ : 1

Price : 1million~~2 million USD/set

Delivery Time : 120-180days

Packaging Details : naked

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Name : Marine Exhaust Gas Cleaning System

Type : EGCS

Material : Duplex Stainless Steel

Color : Grey Painted

Application : Marine Desulfurization

Output Power (MW) : 4 - 55

Back Pressure (Pa) : Less Than 1000

Outside Diameter (M) : 1.9 - 7.2

Height (M) : 13 - 18

Dry Weight(Ton) : 7 - 43

Operation Weight(Ton) : 9 - 58

System Power Comsuption(KW) (Open)104 - 932 : 104 - 932

System Power Comsuption(KW) (Close) : 90 - 587

Contact Now

Marine Scrubber Tower

A marine exhaust gas cleaning system is such device that can remove SQx from vessel’s engine and boiler exhaust gases with seawater or NaOH solution or Mg(OH)2 solution to meet the IMO regulation on SOx emission.

Specification

parameters of I -Type scrubber
Output power (MW)	4	12	20	30	44	55
Back pressure (Pa)	Less than 1000
Outside Diameter (m)	1.9	3.3	4.3	5.3	6.4	7.2
Height (m)	13	13.8	14.6	15.7	17	18
Dry weight (ton)	7	16	23	30	37	43
Operation weight (ton)	9	19	28	38	49	58
System power comsuption(KW) (open)	104	231	356	470	740	932
System power comsuption(KW) (close)	90	177	242	310	472	587

Desulfurization Comparision

Process

Advantages

Disadvantages

Summary

Sea water (for open loop)

1: Reliable technology and simple process for operation

2: Easily available sea water

3: Less equipment invest cost

4: No consumption of fresh water

1: Larger scrubber required

2: Extra CO2 discharge

3: Not suitable for exhaut gas with high SOx

4: Large occupying space and low desulfurization efficiency in low salty sea water

5:Depending on the sea water alkalinity

6: Produced more effluent

1: Simple structure and cheap cost

2: Applicable to the sea where discharge effluent can be allowed

Fresh water +NaOH (close loop or Hybrid)

Hybrid- can be realized by one touch control beteen open loop and close loop

1: Not relying on the condition of sea water

2: High desulfurization efficiency

3: Less CO2

1: Consuming fresh water

2: Requiring dosing system

3: Requiring cooling system

4: NaOH is required to be stored safely

1:High equipment cost

2: Better stability

Sea water + Mg(OH)2

(close loop or Hybrid)

Hybrid- can be realized by one touch control beteen open loop and close loop

1: Not relying on the condition of sea water

2: Better desulfurization efficiency than sea water

3: Less alkaline required

4: Can be easily and safely stored and transforted

1: Requiring dosing system

2: Requiring cooling system

1: High equipment cost

2: Better stability

3: Harmless to the body

Product details

Product Tags:

Exhaust Gas Scrubbers For Ships

Scrubber In Ship

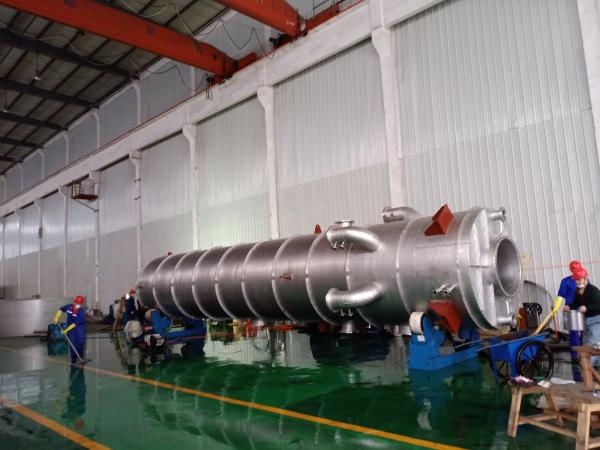

Water Treatment Shipping Marine Scrubber Tower Images
